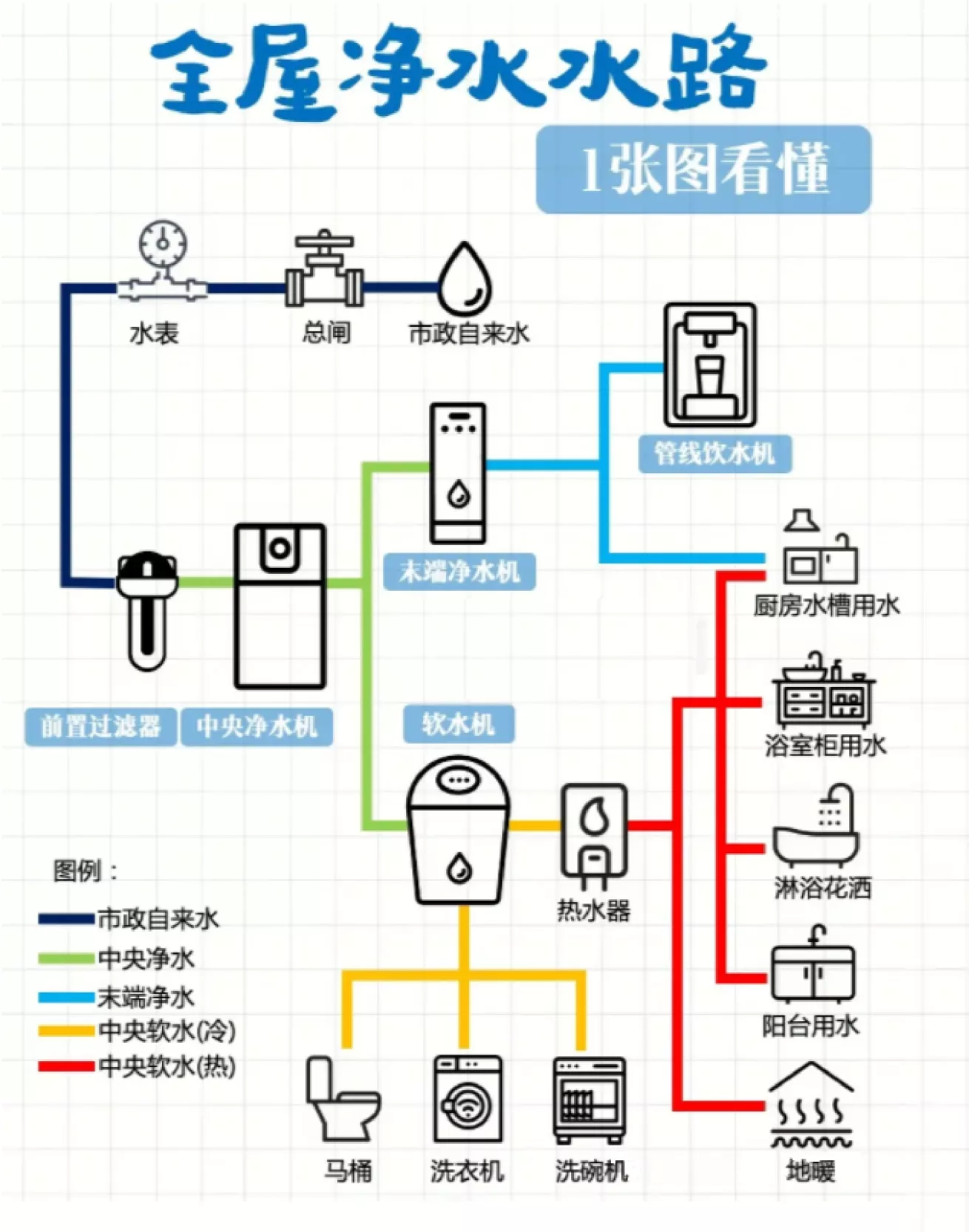

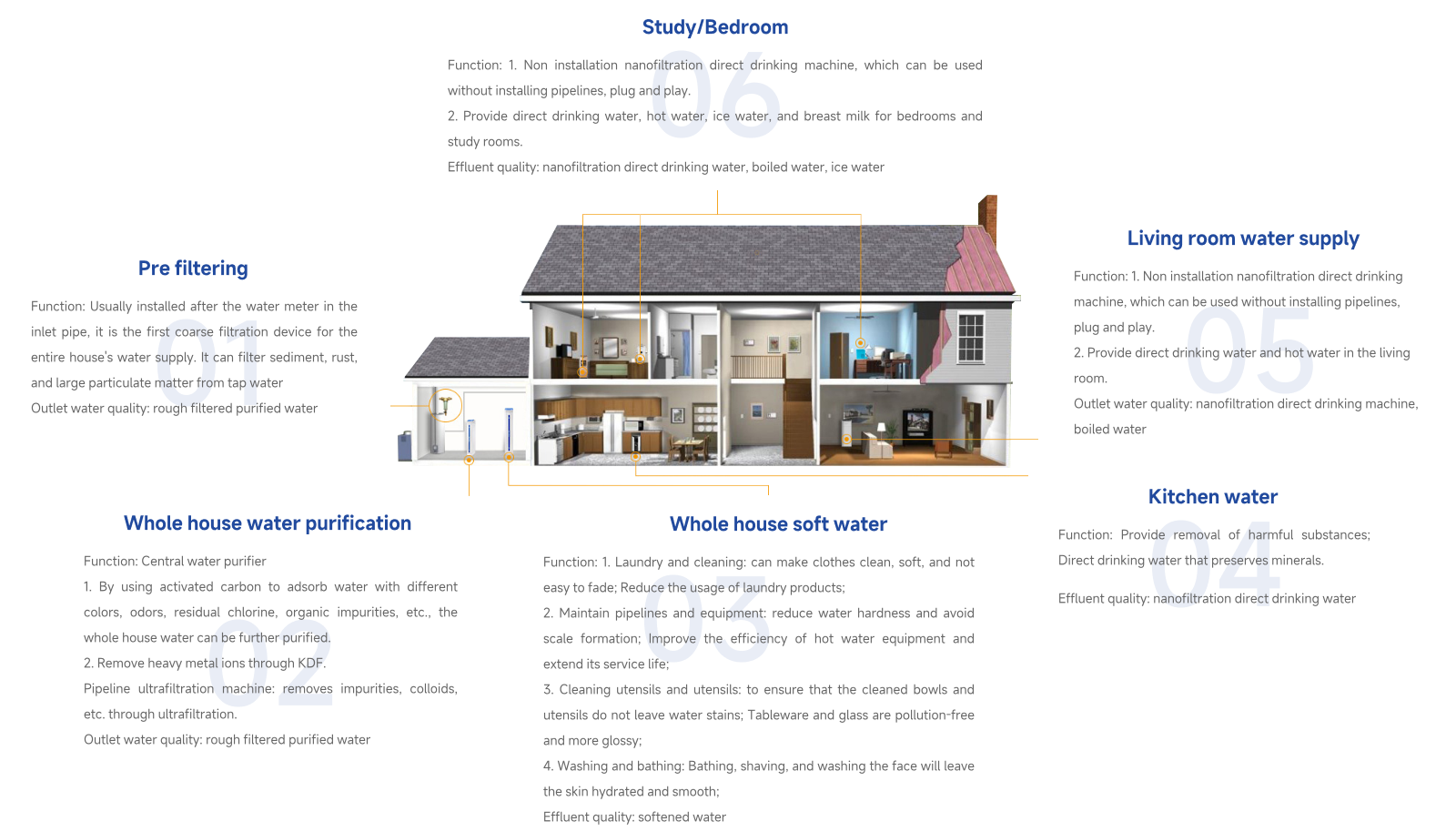

Family whole house water purification refers to purifying the tap water of the entire house to match the most suitable water quality for various water needs such as drinking, eating, washing, bathing, etc. By scientifically combining pre filters, central water purifiers, central water softeners, kitchen water purifiers, pipeline machines, and other equipment, not only can the purity and safety of drinking water be ensured, but domestic water can also be purified and softened, bringing a better laundry and bathing experience.
Main types
Filter harmful impurities in water through ultrafiltration membrane while retaining beneficial trace elements.
Also known as a direct drinking machine, its effluent has higher purity and can be consumed directly.
Using activated carbon filter as the main component, combined with various other filter materials to filter tap water.
A water purifier between ultrafiltration and RO reverse osmosis, capable of selectively intercepting some substances
It mainly filters tap water through primary or secondary simple filters, suitable for situations with good water quality.

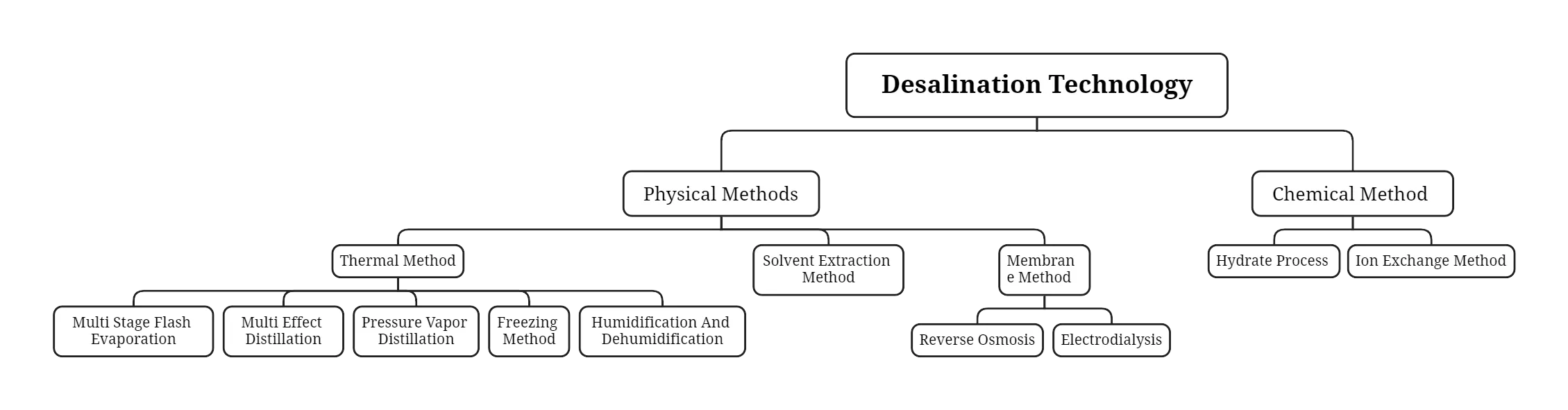

Desalination refers to the process of separating dissolved minerals, salts, organic matter, bacteria, viruses, and solids from seawater to obtain fresh water.
Governance Process
The seawater desalination treatment process mainly includes the following key steps:
Pre treatment: Seawater enters the factory area through diversion channels or pipelines laid on the seabed.Large floating objects in the water are intercepted through a sieve, and algae are killed using agents such as liquid chlorine and sodium hypochlorite.
By using air flotation (DAF) to remove suspended solids from water, compressed air dissolved in the water is released as micrometer sized bubbles in the pool. The pollutants are attached to the surface by the bubbles and scraped into the hopper by the skimmer to complete the separation. Further removal of fine suspended solids, colloidal particles, odors, etc. in water can be achieved through activated carbon+quartz sand filtration or ultrafiltration membrane filtration.
Reverse osmosis membrane treatment: The function of reverse osmosis membrane is to remove organic matter, salt, and bacteria from the influent, thereby obtaining fresh water. Reverse osmosis membrane elements are the core components, and different membrane elements are selected based on the total dissolved solids (TDS) in seawater.
Post treatment: Ultra pure water obtained from reverse osmosis membrane treatment is used in industries such as electronics, power, and biopharmaceuticals. Due to its low hardness, direct consumption is not suitable for human health. It needs to meet the drinking water standards, and the permeate water needs to undergo a remineralization process to increase its hardness. Add liquid chlorine or chlorine dioxide to the treated water to kill pathogenic microorganisms in the water.
Concentrated water discharge: After reverse osmosis, the concentration of seawater has doubled. Due to the increase in salinity and temperature, as well as the presence of chemicals, it will have a negative impact on the surrounding marine environment and its biodiversity.
Salt water treatment is a practical environmental issue, and the usual disposal methods include pipeline discharge into the sea, deep well injection, evaporation ponds, etc.
Four Core Advantages
1. Core membrane technology with low energy consumption and long service life
Adopting core membrane technology, adding an energy recovery system to reduce energy consumption, selecting equipment materials and accessories to ensure long system service life and low maintenance costs
2. Desalination of seawater ensures stable and safe water quality for safe drinking
The intelligent water quality detection control and system maintenance plan ensures long-term stability of the effluent water quality, which has passed national testing and certification, saving time, worry and peace of mind.
3. Apply new intelligent control to strongly protect the core
Set high and low pressure protection switches according to process parameters, which can automatically switch and interlock alarm shutdown to protect high-pressure pumps and reverse osmosis membrane components.
4. Modular installation mode is convenient and easy to implement
In terms of spatial and technological utilization, based on the modular design concept, the spatial configuration is more reasonable, construction is more convenient and efficient, and different needs are met.
Product Features
1. High quality reverse osmosis membrane, desalination rate>99.2%
2. High quality high-pressure pump
3. Long service life: 15-20 years
4. Strong applicability
5. Water outlet standard: meets the standard for drinking water for daily use
